Industrial PSA Oxygen Generator with 0.1-0.8MPa Pressure and ≥90%±3% Oxygen Purity for Laser Cutting

Industrial PSA Oxygen Generator with 0.1-0.8MPa Pressure and ≥90%±3% Oxygen Purity for Laser Cutting
Industrial PSA Oxygen Generator with 0.1-0.8MPa Pressure and ≥90%±3% Oxygen Purity for Laser Cutting Industrial PSA Oxygen Generator with 0.1-0.8MPa Pressure and ≥90%±3% Oxygen Purity for Laser Cutting Industrial PSA Oxygen Generator with 0.1-0.8MPa Pressure and ≥90%±3% Oxygen Purity for Laser Cutting Industrial PSA Oxygen Generator with 0.1-0.8MPa Pressure and ≥90%±3% Oxygen Purity for Laser Cutting

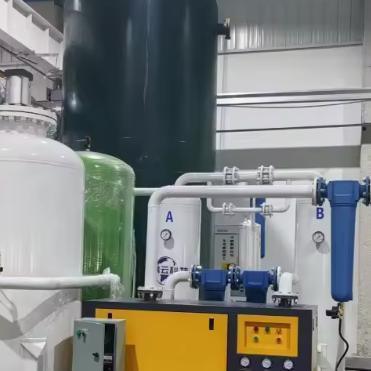

تصویر بزرگ :  Industrial PSA Oxygen Generator with 0.1-0.8MPa Pressure and ≥90%±3% Oxygen Purity for Laser Cutting

جزئیات محصول:
محل منبع: چین
نام تجاری: GNEE
گواهی: SGS
پرداخت:
مقدار حداقل تعداد سفارش: ≥1Sets
قیمت: According to the product
شرایط پرداخت: MoneyGram ، Western Union ، T/T ، D/P ، D/A ، L/C
قابلیت ارائه: 25 هر ماه
مخاطب

Industrial PSA Oxygen Generator with 0.1-0.8MPa Pressure and ≥90%±3% Oxygen Purity for Laser Cutting

شرح
فشار: 0.1-0.8MPa نوع: جذب نوسان فشار (PSA)
اکسیژن خلوص: 90 90 ± 3 ٪ （1lpm ظرفیت: 1-200 nm3/h
مصرف: صرفه جویی در مصرف انرژی وزن خالص: 22 کیلوگرم
منبع تغذیه را کنترل کنید: 0.2kW 220v 50Hz ضمانت: 1 سال
برجسته کردن:

0.1-0.8MPa PSA Oxygen Generator,≥90%±3% Oxygen Purity Oxygen Generation Plant,1-200 Nm3/h Capacity PSA O2 System

,

≥90%±3% Oxygen Purity Oxygen Generation Plant

,

1-200 Nm3/h Capacity PSA O2 System

Industrial PSA O2 Oxygen Generator Machine System Plant For Laser Cutting
Product Advantages
  • Simple installation and maintenance thanks to modular design and construction
  • Fully automated system for simple and reliable operation
  • Guaranteed availability of high-purity industrial gases
  • Product available in liquid phase for storage during maintenance operations
  • Low energy consumption
  • Short delivery time
Product Parameters
Gas production m³/h Oxygen concentration% Oxygen pressure Mpa Power 220V Power/kw Host weight/kg Dimensions/mm Air loss factor Number of bottles per day 40L/120-150kg
393±30.4±0.10.26001500900150013.512-15
593±30.4±0.10.29001600900150013.520-24
1093±30.4±0.10.212001600900190013.540-48
2093±30.4±0.10.2150019001000218013.580-96
3093±30.4±0.10.2200020001100218013.5120-154
4093±30.4±0.10.2250026001200230013.5160-192
5093±30.4±0.10.52800180015002400+80013.5200-240
6093±30.4±0.10.53200180015002600+80013.5240-184
7093±30.4±0.10.53500180016002800+80013.5280-236
8093±30.4±0.10.54000180016002900+100013.5320-394
9093±30.4±0.10.54800200016002800+100013.5360-432
10093±30.4±0.10.55800220016002900+100013.5400-480
12093±30.4±0.10.56500240016003100+100013.5480-576
Industrial PSA Oxygen Generator with 0.1-0.8MPa Pressure and ≥90%±3% Oxygen Purity for Laser Cutting 0 Industrial PSA Oxygen Generator with 0.1-0.8MPa Pressure and ≥90%±3% Oxygen Purity for Laser Cutting 1 Industrial PSA Oxygen Generator with 0.1-0.8MPa Pressure and ≥90%±3% Oxygen Purity for Laser Cutting 2
Working Principle
The VPSA oxygen production system mainly consists of a blower, vacuum pump, switching valve, adsorber, and oxygen balance tank. The raw air is pressurized by a Roots blower and enters the adsorber filled with oxygen molecular sieves, where moisture, carbon dioxide, and nitrogen are adsorbed to produce oxygen. When adsorption reaches a certain degree, a vacuum pump evacuates the system, extracting and discharging adsorbed components into the atmosphere while regenerating the adsorbent. This process is automatically controlled by PLC and switching valve system.
Applications
Industrial oxygen generator used for aquaculture, welding, cutting, or feeding oxygen to ozone machines.
  • Medical: Can be configured to fill hospital pipelines directly with filling ramp backup. Oxygen cylinders can be filled simultaneously or during low consumption periods.
  • Metallurgy: Used for anneal protection, agglomeration protection, nitrogenizing, furnace washing and blowing. Applications include metal heat treatment, powder metallurgy, magnetic materials, copper processing, metallic mesh, galvanized wire, and semiconductors.
  • Chemical and new material industries: For chemical material gas, pipeline blowing, gas replacement, gas protection, and product transport. Used in chemicals, urethane elastic fiber, rubber, plastic, tires, polyurethane, biotechnology, and intermediates.
  • Electronic industry: For encapsulation, agglomeration, anneal, deoxidization, and storage of electronic products. Applications include peak welding, reflow welding, crystals, piezoelectricity, electronic porcelain, electronic copper tape, batteries, and electronic alloy materials.
Packaging
Size123 (L) * 456 (W) * 789 (D)
Weight1.2 T
Packaging Details Standard packaging is wooden box (Size: L*W*H). For European exports, wooden boxes are fumigated. If container space is limited, we use PE film or accommodate special customer requests.
In addition to PSA Oxygen Generators, we also produce VPSA Oxygen Generators, storage tanks, heat exchangers and other products. For inquiries about VPSA Oxygen Systems or other products, please contact us at info@gneeheatex.com. We look forward to serving you.
