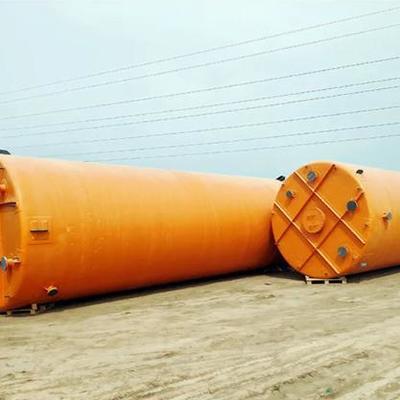

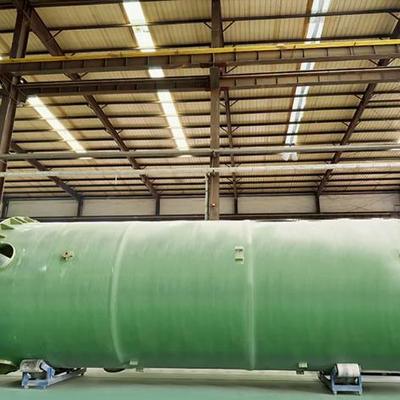

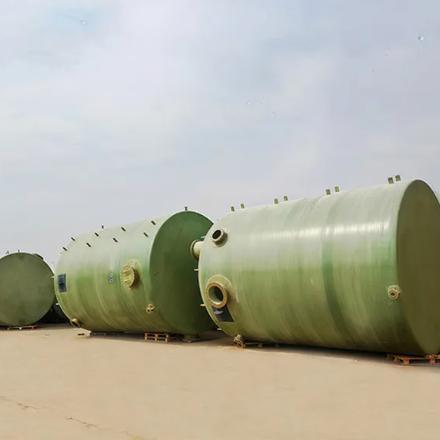

Double Wall Underground Fuel Oil Storage Tank 5000L-60000L

Double Wall Underground Fuel Oil Storage Tank 5000L-60000L
Double Wall Underground Fuel Oil Storage Tank 5000L-60000L Double Wall Underground Fuel Oil Storage Tank 5000L-60000L Double Wall Underground Fuel Oil Storage Tank 5000L-60000L Double Wall Underground Fuel Oil Storage Tank 5000L-60000L

تصویر بزرگ :  Double Wall Underground Fuel Oil Storage Tank 5000L-60000L

جزئیات محصول:
Place of Origin: CHINA
نام تجاری: GNEE
گواهی: SGS
پرداخت:
Minimum Order Quantity: ≥1sets
قیمت: depends on the product
Delivery Time: Transit time: Est. 17-24 days
Payment Terms: MoneyGram,Western Union,T/T,D/P,D/A,L/C
مخاطب

Double Wall Underground Fuel Oil Storage Tank 5000L-60000L

شرح
Design Pressure: 17 bar Outer Material: Q345R
Outer Diameter: customized Advantage: Long Service Time
Structure: Horizontal or vertical type vessels Function: Low temperature storage
Length: 6058mm Design Code: ASME
Warranty: 1 Year Working Years Design: 20years
برجسته کردن:

underground fuel oil storage tank,double wall fuel storage tank,large capacity oil storage tank

,

double wall fuel storage tank

,

large capacity oil storage tank

Best Seller 5000L-60000L Double Wall Underground Fuel Oil Storage Tank
Product Specifications
Design Pressure: 17 bar
Outer Material: Q345R
Outer Diameter: Customized
Structure: Horizontal or vertical type vessels
Function: Low temperature storage
Length: 6058mm
Design Code: ASME
Warranty: 1 Year
Working Years Design: 20 years
Product Overview

Our fuel storage tanks are available in three configurations to meet diverse operational requirements:

Above-ground Oil Tanks

Characterized by foundations at or above adjacent elevation, these tanks offer easy construction and maintenance but have higher evaporation loss and fire risk.

Underground Oil Tanks

Featuring oil levels 0.2m below adjacent elevation with 0.5m soil cover, these tanks provide reduced loss and lower fire risk.

Semi-underground Oil Tanks

With burial depth exceeding half their height and oil levels ≤2m above adjacent elevation, these offer balanced performance.

Technical Specifications
Capacity (m³) Inner Tank Size (mm) Outer Tank Size (mm)
1000 φ 12400*14235 φ 13000*14805
2000 φ 13500*15750 φ 16000*18500
3000 φ 16200*17195 φ 12400*14235
5000 φ 20000*19415 φ 22400*21870
8000 φ 23000*21810 φ 25300*25000
10000 φ 25000*22000 φ 40000*29760
20000 φ 38000*20000 φ 40000*29760
30000 φ 41500*26000 φ 43500*35198
50000 φ 50000*38600 φ 52000*38600
Key Features
  • Pressure Range: Atmospheric to 50 Kpa
  • Temperature Range: -19°C to 200°C
  • Material Compatibility: Suitable for LIN, LNG, LOX, LPG, LAR, LNH3, Liquid Ethylene, Ethane, and Propane
  • Custom Sizing: Available in 200-50000m³ configurations
  • Safety Features: Wall-ray protection, anti-static design, and comprehensive fire control
  • Corrosion Protection: Customized based on stored medium and soil conditions
  • Configuration Options: Horizontal or vertical, single or double-walled designs
Double Wall Underground Fuel Oil Storage Tank 5000L-60000L 0 Double Wall Underground Fuel Oil Storage Tank 5000L-60000L 1 Double Wall Underground Fuel Oil Storage Tank 5000L-60000L 2 Double Wall Underground Fuel Oil Storage Tank 5000L-60000L 3
Professional Storage Tank Solutions

As a professional manufacturer of large storage tanks, we provide comprehensive services including design, material supply, and overseas installation. Our engineering team creates tanks to international standards using appropriate materials for each application.

For more information about our products, please contact us at info@gneeheatex.com.
