جزئیات محصول:
|
Core Components: | Pressure vessel | Capacity: | 10,000 liters |
---|---|---|---|
Working Temperature: | -196 - 50 ℃ | Filling Rate: | 95% |
Max Working: | 3.6 MPa | Design Standard: | SGS,ASME |
Warranty: | 1 Year, | Marketing Type: | New Product 2025 |
Outer Material: | Q235R/Q345R Carbon Steel | Pressure: | 0.8Mpa |
Max Working Pressure: | 2.16mpa | Length: | 11000mm |
برجسته کردن: | 15000 liter LPG gas tank,pressure tank storage equipment,cryogenic LPG storage tank,pressure tank storage equipment,cryogenic LPG storage tank |
Attribute | Value |
---|---|
Core Components | Pressure vessel |
Capacity | 10,000 liters |
Working Temperature | -196 - 50 ℃ |
Filling Rate | 95% |
Max Working | 3.6 MPa |
Design Standard | SGS, ASME |
Warranty | 1 Year |
Marketing Type | New Product 2025 |
Outer Material | Q235R/Q345R Carbon Steel |
Pressure | 0.8Mpa |
Max Working Pressure | 2.16mpa |
Length | 11000mm |

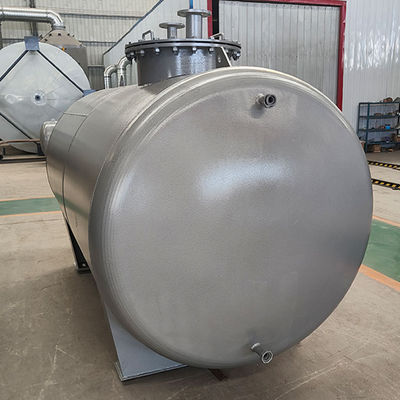

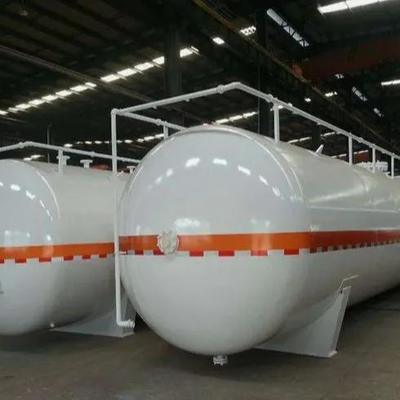

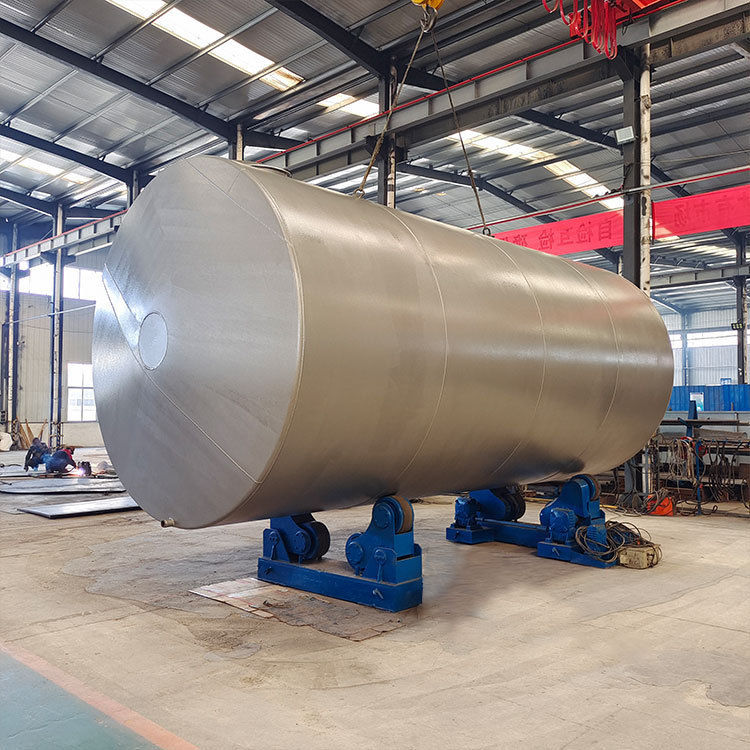

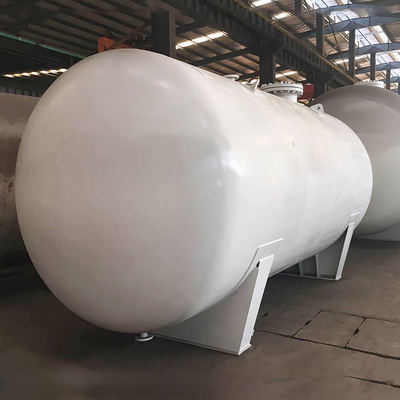

An LPG tank, also known as an LPG cylinder or storage vessel, is engineered to store propane, butane, or a mixture of both in their liquid state, which is achieved by maintaining the gas at a high pressure. Depending on the uses of LPG, such tanks come in various shapes, sizes, and materials. They range from small portable cylinders for household use to large, fixed tanks for commercial or industrial purposes.
Volume (m³) | Pressure (MPa) | Work Medium | Type | Weight (kg) | Size (D*H)mm |
---|---|---|---|---|---|
5 | 0.8 | liquid oxygen liquid nitrogen liquid argon | Vertical or horizontal | 3412 | 2000*5130 |
10 | 5378 | 2100*7170 | |||
15 | 6415 | 2500*6912 | |||
20 | 8255 | 2500*8765 | |||
30 | 12899 | 2900*8870 | |||
50 | 18960 | 3100*12058 | |||
100 | 34480 | 3600*15947 | |||
5 | 1.6 | 3945 | 2000*5130 | ||
10 | 6787 | 2000*7845 | |||
15 | 8628 | 2400*7552 | |||
20 | 10744 | 2400*9371 | |||
30 | 14640 | 2700*10310 | |||
50 | 23370 | 3100*12058 | |||
5 | 2.16 | liquid carbon dioxide | 4450 | 2000*5130 | |
10 | 6986 | 2100*7170 | |||
15 | 8810 | 2500*6912 | |||
20 | 11328 | 2500*8756 | |||
30 | 17961 | 2500*8875 | |||
50 | 26097 | 3200*11300 | |||
100 | 49627 | 3500*16870 |
Liquefied petroleum gas can be used in a number of applications, which include:
Thus, just like the storage and transportation of LNG, LPG tanks are the most efficient way to deliver LPG and provide easy access to it.
A number of industries use LPG as an energy carrier. It's also used as feedstock for the chemical synthesis of substances such as butene, propylene, ethylene and acrylic acid. Again, LPG tanks serve the purpose of facilitating the different industries' access to this substance.
GNEE has a professional team with 150 employees, including 2 senior engineers, 17 engineers and 10 assistant engineers. Based on excellent technical capabilities, rich experience and a strong sense of responsibility, the team ensures that every product meets international standards and satisfies customer needs.
We adhere to the talent concept of "combining attraction with cultivation, combining use with development, and combining management with care" and are committed to building a professional team that emphasizes both technology and service.
If you want to learn more about GNEE's products, you can send an email to info@gneeheatex.com. We are more than happy to assist you.
